Product Overview

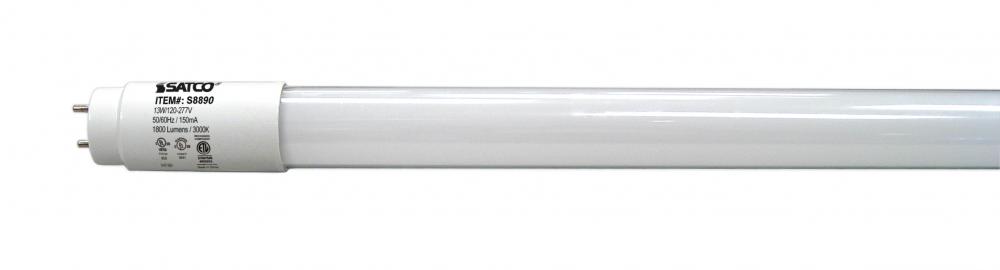

13 Watt T8 LED; Medium bi-pin base; 3000K; 50000 Hours; 1800 Lumens; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

1601-2600

Kelvin:

2501-3000

Wattage:

13w

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K

Bulb Shape:

T8

Diameter:

1

EA Length:

48

Harmonized Codes:

8539.52.0051

Length:

47.78

Lumens:

1850L

Shap Carton Width:

1.1

Ship Carton Height:

1.1

Ship Weight:

0.5

Warranty:

5 Year Limited - T8 LED Bulbs

Weight:

0.53

BAA Compliant:

No

Ballast Bypass Direct:

Dual

Ballasting Requirements:

Ballast required (Type A) or Ballast Bypass (Type B)

Beam Spread:

180

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

0.0336

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

Only in Type A mode; Check Ballast MFG for Dimmer Compatibility

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

PL20BPLJYLDH

DLC Primary Use:

Dual Mode Internal Driver (UL Type A and Type B)

Efficacy:

138.46 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Flourescent Equivalent:

28W/32W

Housing Color:

White

Incandescent Equivalent:

50W

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type A/B

Lamp End Type:

Single Ended;Double Ended

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Frost

Location Rating:

Damp

Material:

Glass

Nominal Length:

48

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

25

Pack Type:

Sleeve

Power Factor:

0.96

Quantity In Pack:

1

R9 Value:

1

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

13T8/LED/48-830/DUAL/BP-DR

Specification Notes:

Ballast Compatible - bare lamp is 12W; Ballast Bypass - 13W.; Protection from arcing- Power must be turned off prior to installing lamps. Sockets must be in good working order, not broken, cracked or electrically compromised. If arcing occurs at the lamp p

Style:

Utility

Surge Protection:

Built-in-surge protection - 0.7KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

20%

Wattage Selectable:

No

Watts:

13W
