Product Overview

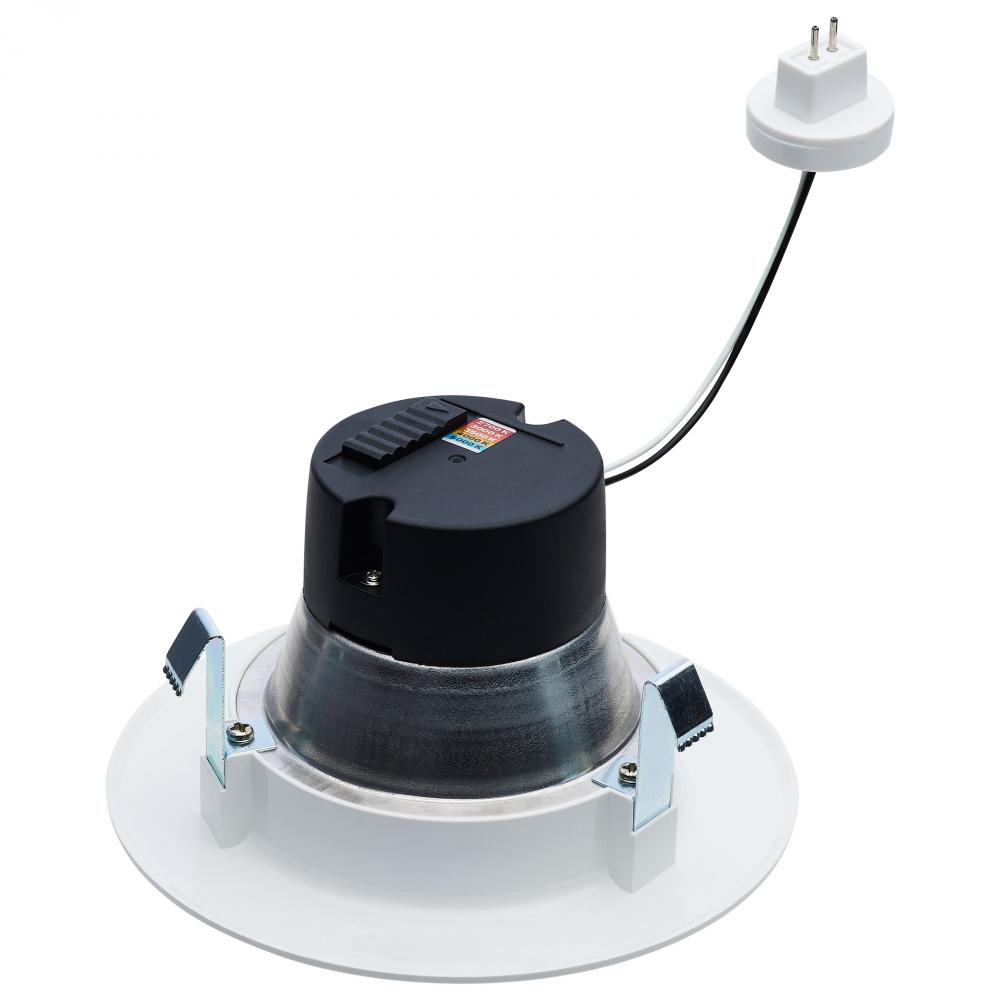

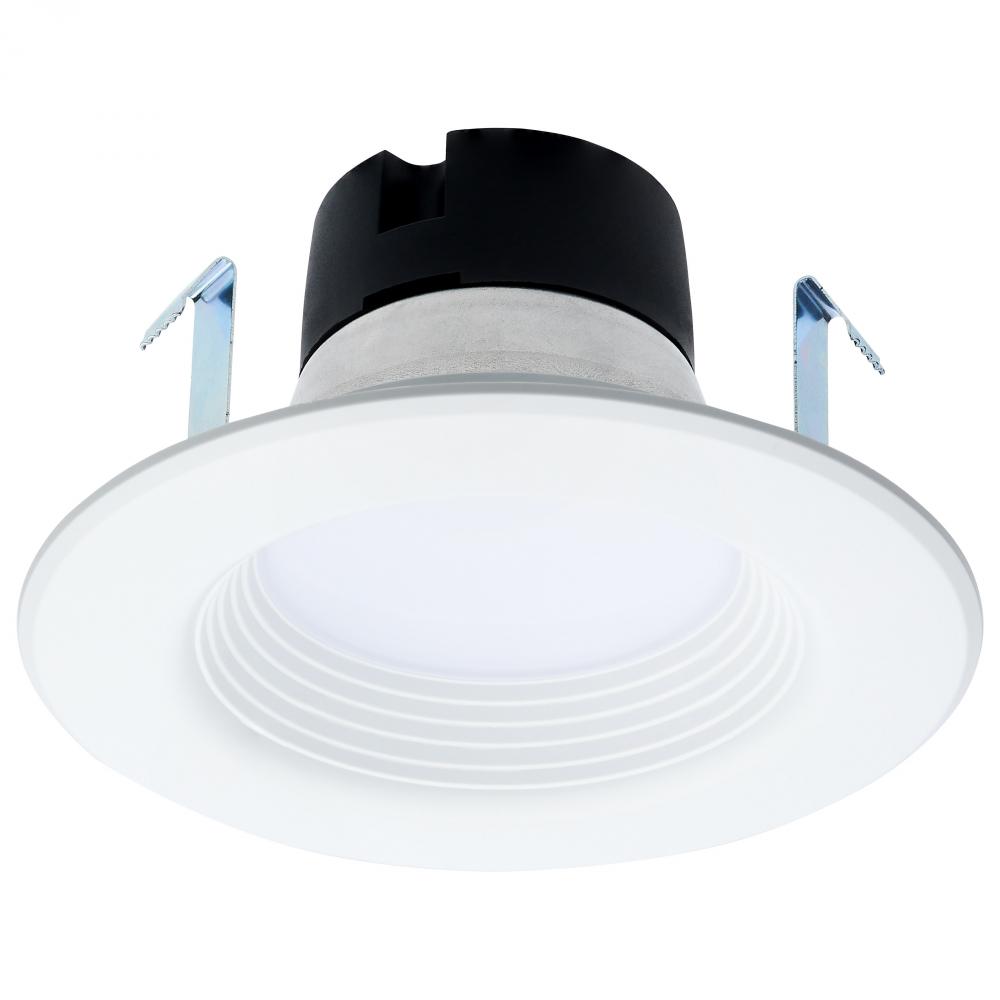

6.5 Watt LED Downlight Retrofit; 4 Inch Baffle; CCT Selectable; 12 Volts; Matte White Finish

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Additional Info:

The dimming control will depend on the Driver or transformer that is been used, as an example if a magnetic Tramformer is being used it will require an LV dimmer (for example Lutron DVLV-600P-WH) if an Electronic transformer is being used it will require a

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

5.31

Dimmable:

Yes-Dimmable

Harmonized Codes:

8539.52.0091

Lumens:

600L

Ship Carton Height:

5.51

Ship Carton Length:

5.51

Ship Carton Width:

3.15

Warranty:

3 Year Limited - Fixtures

Air Tight:

No

Amps:

0.560A

ANSI Base:

GU5.3

Beam Spread:

85

CA Prop-65:

Lead

Can Size:

4 in.

Carton Cubic Feet:

0.0553

Cartons Per Unit:

1

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

4.05 in. Cutout

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Phase cut

Efficacy:

92.31 LPW

FCC Compliant:

Yes

Feature 1:

CCT Selectable

Feature 2:

Non-Conductive Dead-Front Trim

Feature 3:

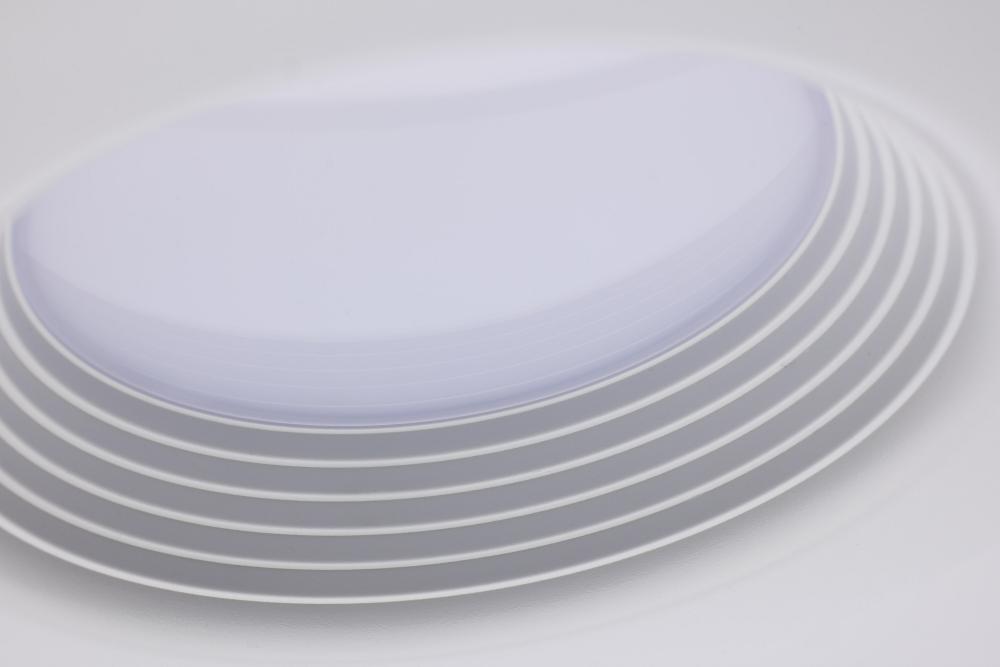

Stepped Baffle for Reduced Glare

Feature 4:

Dimmable

Feature 5:

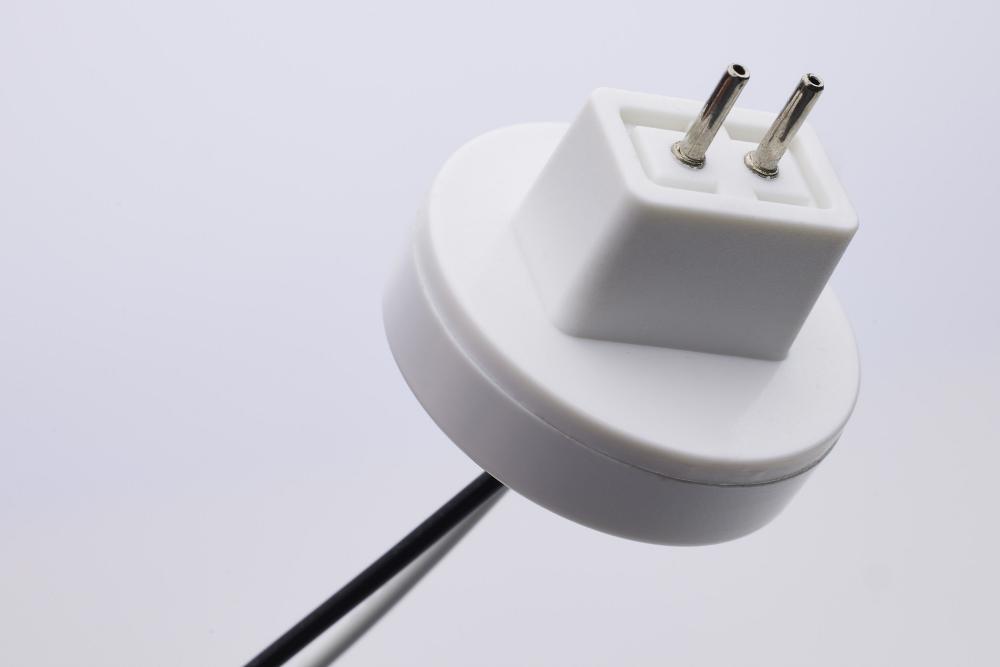

GU5.3 Bi-Pin Base for MR16 Retrofits

Feature 6:

Wet location rated

Feature 7:

50,000 Hour Functional Life

Finish Family:

White

IC Rated:

No

Incandescent Equivalent:

50W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Lens Finish:

Matte Frosted

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO NUVO's S11838 offers a hassle-free solution with its 12 volt, 4-inch Retrofit Downlight, ideal for upgrading MR16 recessed luminaries in any space. Engineered with low voltage and an attached GU5.3 base, this fixture is designed to replace older,

Material:

Polycarbonate (PC)

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Color Box

Power Factor:

0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO offers a hassle-free solution with its 12 volt, 4-inch Retrofit Downlight, ideal for upgrading MR16 recessed luminaries in any space. Engineered with low voltage and an attached GU5.3 base, this fixture is designed to replace older, higher watta

Safety Listing:

cETLus - Classified

SDS class:

LED_Fixture

Short Description:

6.5WLED/DLR/BFL/4/CCT-SEL/12V

Sloped Ceiling Compatible:

No

Temperature (CCT):

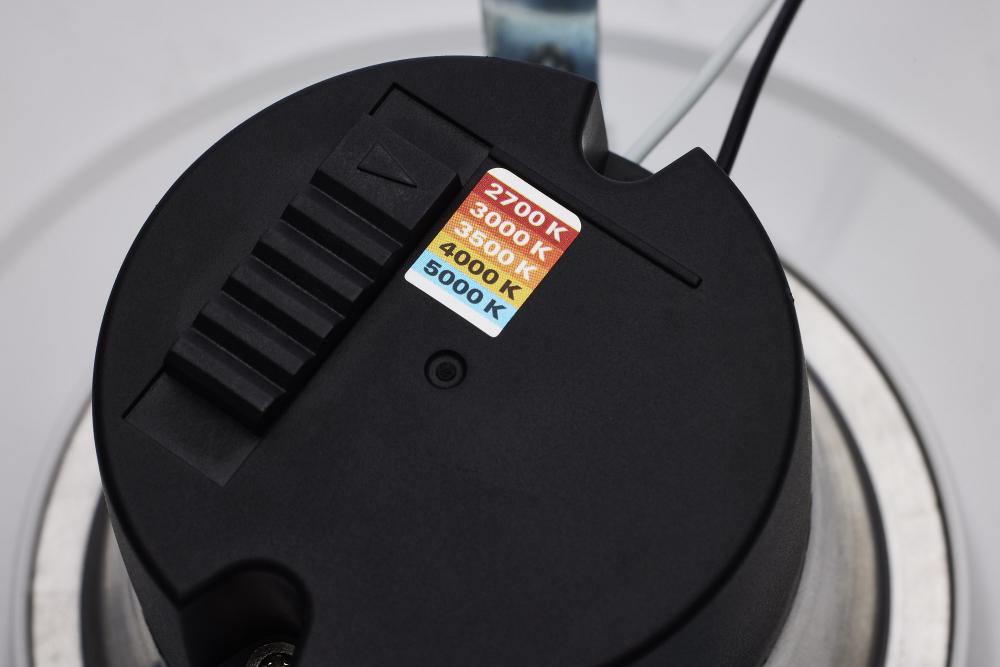

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

34.03%

Trim Color:

Matte White

Trim Material:

Polycarbonate (PC)

Wattage Selectable:

No

Weight Lb.:

0.3
