Product Overview

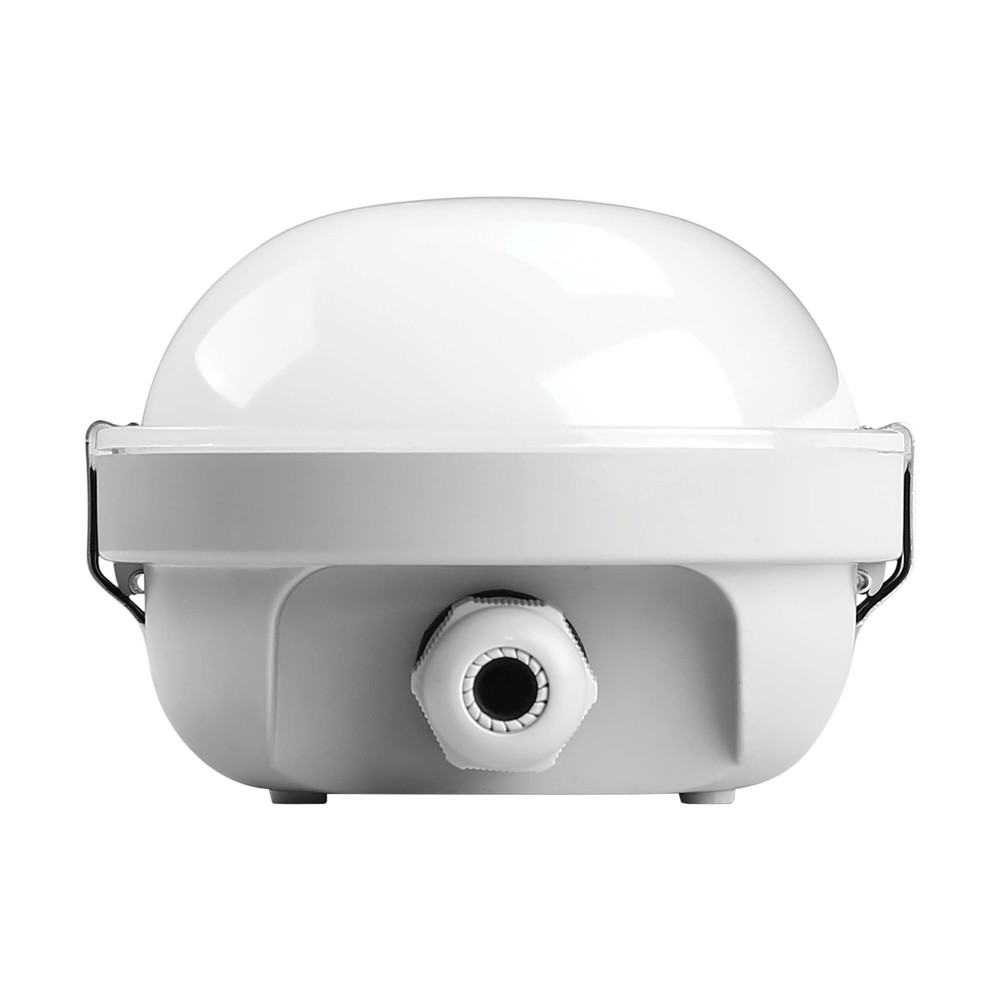

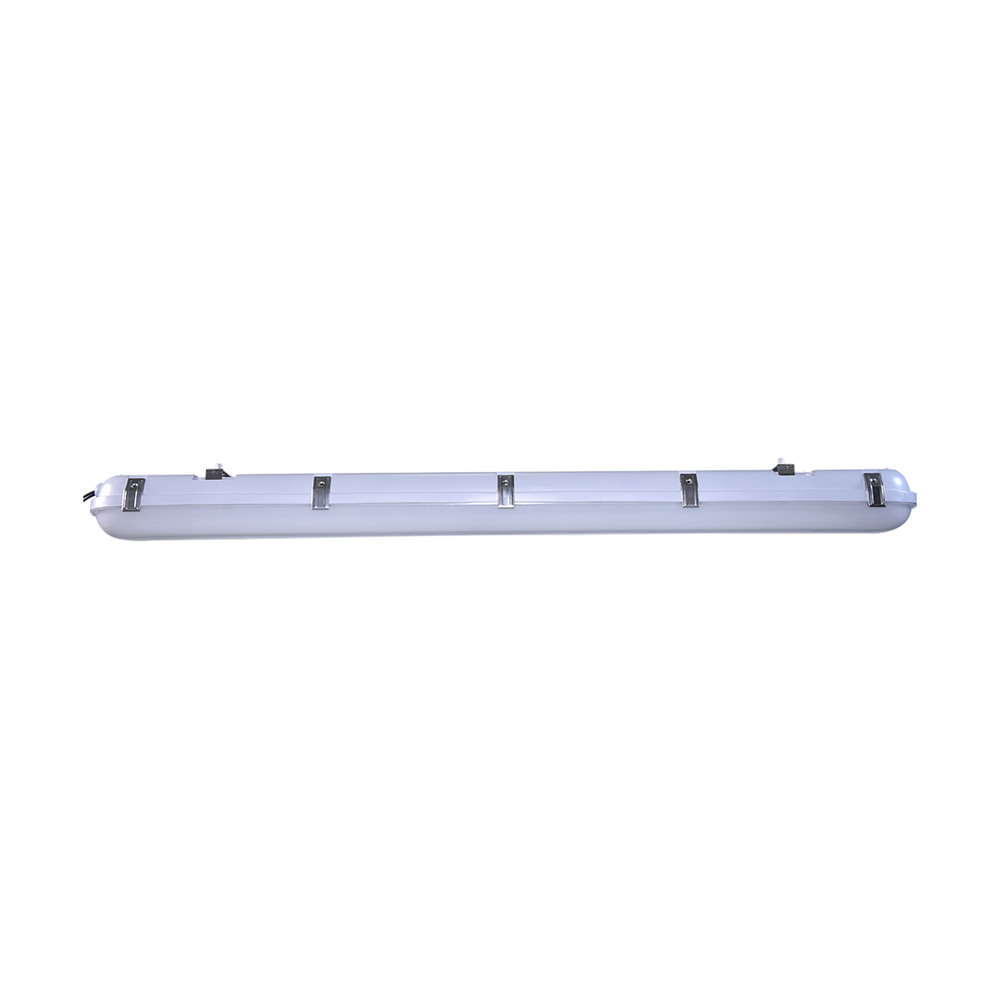

4 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 and IK08 Rated

Standard Information

Category:

Track Ltg.

Subcategory:

Track Heads

Finish:

Gray

Style:

Traditional

Option:

LED

Prop 65

Refinement Options

Category:

Linear

Sub Category:

Vapor Proof

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

3.94

Each Length:

49.61

Each Width:

5.71

Length:

47.24

Lumens:

5360L-7991L

Tariff Code:

9405.42.6000

Warranty:

5-Years

Amps:

0.400-0.144/0.500-0.181/0.600-0.217A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

China

CRI:

80+

Dimmable Function:

0-10V; Integrated Sensor; Bi-Level Dimmable

DLC Classification:

Standard

DLC Primary Use:

Direct Linear Ambient Luminaires

Each Cube:

0.6459

Each Quantity:

1

Efficacy:

134.00/133.51/133.18 LPW

FCC Compliant:

Yes

Feature 1:

Heat and tamper resistant, water-proof and dust-proof. Can be used for food factories

Feature 10:

Suspension kit (sold separately)

Feature 2:

IP65 and IK08 Rated

Feature 3:

CCT and Wattage Selectable

Feature 4:

2KV Built-in Surge Protection

Feature 5:

Non-corrosive (PC) polycarbonate housing

Feature 6:

0-10V Dimmable

Feature 7:

Integrated Microwave Sensor

Feature 8:

Water-proof, dust-proof, corrosion proof, can be used for food factories

Feature 9:

5 Year Warranty

Finish Family:

Gray

Fixture shape:

Linear

Flicker Free:

No

Flr Equiv:

80W-100W

Has Driver:

Yes

HID Equiv:

125W-150W

Impact Rating (IK):

IK08

Incandescent Equivalent:

300W-400W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

No

IP Rating:

IP65

JA8 Compliant:

No

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO's 65-824 wattage selectable, 4 foot vapor proof linear fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this dimmable fixture is CCT and wattage selectable and wet location rated, with an

Material:

Plastic

Mounting Procedure:

Surface: Bracket;Suspension: CablesChain

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Photocell:

Integrated Microwave Sensor

Power Factor:

>0.96

Quantity In Pack:

1

Rated For Vapor Tight Fixture:

Yes

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Our latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These products are

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

4' LINEAR VAPOR PROOF W/SENSOR

Sloped Ceiling Compatible:

Yes

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

10.10%

Wattage Selectable:

Yes

Weight Lb.:

5.29
